Specification

Specification	NEDB-400A	NEDB-400B	NEDB-400C	NEDB-400D
Type	Portable	Desktop	Colorful	Standby
Computer	Not Included	Not Included	Not Included	Includes PC
Laser Source	IPG Series – Pulsed High Energy Ytterbium Fiber Laser	IPG Series – Pulsed High Energy Ytterbium Fiber Laser	IPG Series – Pulsed High Energy Ytterbium Fiber Laser	IPG Series – Pulsed High Energy Ytterbium Fiber Laser
Mode of Operation	Pulsed	Pulsed	Pulsed	Pulsed
Polarization	Random	Random	Random	Random
Nominal Output Power	10W–30W	10W–30W	10W–30W	10W–50W
Operating Voltage	220V	220V	220V	220V
Max. Power Consumption	600W	600W	600W	600W
Net Dimensions (cm)	70×20×50	80×38×72	70×20×50	143×62×101
Net Weight	44 kg	53 kg	44 kg	130 kg
Gross Weight	60 kg	70 kg	60 kg	200 kg
Scanning Speed	0–7000 mm/s	0–7000 mm/s	0–7000 mm/s	0–7000 mm/s
Marking Speed	0–5000 mm/s	0–5000 mm/s	0–5000 mm/s	0–5000 mm/s
Marking Size	110×110 mm (F-theta 160)	110×110 mm (F-theta 160)	110×110 mm (F-theta 160)	110×110 mm (F-theta 160)
Spot Size	≤ 40 microns (F-theta 160)	≤ 40 microns (F-theta 160)	≤ 40 microns (F-theta 160)	≤ 40 microns (F-theta 160)
Cooling Unit	Air-Cooled	Air-Cooled	Air-Cooled	Air-Cooled
Pilot Laser	650 nm diode laser (visible red light guide)	650 nm diode laser (visible red-light guide)	650 nm diode laser (visible red-light guide)	650 nm diode laser (visible red-light guide)
Continuous Working Time	≥ 16 hours	≥ 16 hours	≥ 16 hours	≥ 16 hours
Humidity	45–85% (no condensation)	45–85%	45–85%	45–85%
Operating Temperature	0°C–40°C	0°C–40°C	0°C–40°C	0°C–40°C
Control Units	LaserMark (English Version)	LaserMark (English Version)	LaserMark (English Version)	LaserMark (English Version)

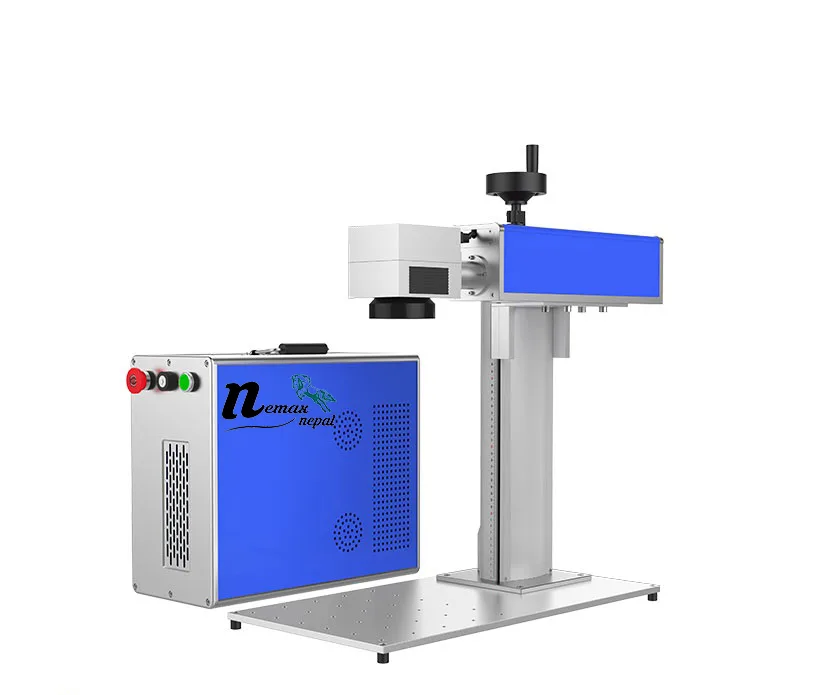

Fiber Laser Marking & Engraving Machine (20W, 30W, 50W)

Industrial Fiber Laser Marking Machine for Permanent Metal Engraving

The Fiber Laser Marking & Engraving Machine is a professional industrial laser solution designed for high-speed, permanent marking and precision engraving on metal and selected engineering plastics. Available in 20W, 30W, and 50W power options, this machine is ideal for manufacturers, fabrication workshops, jewelry businesses, automotive industries, electronics, and branding companies looking for reliable, maintenance-friendly laser marking.

Powered by a high-energy pulsed ytterbium fiber laser source, the machine delivers crisp, permanent markings that never fade, peel, or wear off. Whether you need to engrave logos, serial numbers, QR codes, barcodes, UID codes, nameplates, product information, or decorative designs, this machine provides exceptional precision and repeatability.

Unlike ink-based marking systems, fiber laser technology requires no ink, no consumables, and very little maintenance, making it a cost-effective long-term investment for industrial production.

Available from Nemax Nepal, every machine includes professional installation, operator training, warranty, and nationwide after-sales support.

Key Features

• ✅ Available in 20W, 30W & 50W laser power
• ✅ Permanent laser marking & engraving
• ✅ High-speed scanning up to 7000 mm/s
• ✅ Precision marking speed up to 5000 mm/s
• ✅ Industrial IPG Series Pulsed Ytterbium Fiber Laser
• ✅ Ultra-fine ≤40 micron laser spot
• ✅ 110 × 110 mm marking area
• ✅ Air-cooled system for low maintenance
• ✅ Continuous working time over 16 hours
• ✅ Red-light positioning for accurate alignment
• ✅ No ink, no chemicals, no consumables
• ✅ Easy-to-use LaserMark Software (English)

Perfect For

The Fiber Laser Marking Machine is widely used for:

• Stainless Steel
• Mild Steel
• Aluminum
• Brass
• Copper
• Titanium
• Gold & Silver Jewelry
• Industrial Tools
• Machine Parts
• Medical Instruments
• Electronic Components
• Metal Nameplates
• Promotional Products
• Hardware Accessories

What Can It Mark?

• Company Logo
• Brand Name
• QR Code
• Barcode
• Serial Number
• Batch Number
• Product ID
• Date Codes
• UID Codes
• Graphics
• Images
• Decorative Patterns
• Text & Numbers

Why Choose Fiber Laser Technology?

Compared to traditional marking methods, Fiber Laser offers significant advantages:

• Permanent marking that never fades
• No ink or consumable costs
• Extremely low maintenance
• High-speed industrial production
• Superior engraving quality
• Eco-friendly operation
• High precision for complex designs
• Long laser source lifespan

Why Buy from Nemax Nepal?

When you purchase from Nemax Nepal, you receive:

• Genuine Industrial Fiber Laser Machine
• 1-Year Warranty
• Free Installation & Operator Training
• Technical Support Across Nepal
• Spare Parts Availability
• Fast After-Sales Service
• Expert Consultation Before Purchase

Order Your Fiber Laser Marking Machine Today

Increase your production efficiency with a professional 20W, 30W, or 50W Fiber Laser Marking & Engraving Machine from Nemax Nepal. Create permanent, high-quality markings with zero consumable costs and industrial-grade precision.

---
