4-in-1 Handheld Fiber Laser Welding Machine in Nepal (Welding, Cutting, Cleaning, wire feeding)

Nemax Nepal is proud to present the Horizon Laser 4-in-1 Handheld Fiber Laser Welding Machine — a revolutionary all-in-one laser solution that combines welding, cutting, cleaning, and wire feeding capabilities in a single compact unit. Designed for professionals who demand precision, speed, and versatility, this machine is set to replace traditional electric welding and argon arc welding across industries in Nepal.

Available Models

Model	Laser Power
DPX-W1000	1000W
DPX-W1500	1500W
DPX-W2000	2000W
DPX-W3000	3000W

What Is the 4-in-1 Handheld Fiber Laser Welding Machine?

This machine is a high-power handheld fiber laser welding device that integrates:

• ✅ Laser Welding
• ✅ Laser Cutting
• ✅ Laser Cleaning
• ✅ Wire Feeding Welding

All in one compact, mobile unit. Its handheld design makes it perfect for outdoor operations, boilers, cabinets, doors, windows, and advertising characters — places where traditional fixed platform welding machines simply cannot reach.

Complete Technical Specifications

Specification	DPX-W1000	DPX-W1500	DPX-W2000	DPX-W3000
Laser Source Type	CW Fiber Laser (1080±3nm)
Output Power	1000W	1500W	2000W	3000W
Power Adjustment	10% ~ 100%
Welding Mode	Continuous Welding & Spot Welding
Adjustable Weld Width	0 ~ 6mm (double wire feeding: 0~8mm)
Torch Cable Length	About 10m
Torch Weight	0.75kg
Cooling Method	Water Cooling
Operating Voltage	Single-phase 220VAC			Three-phase 380VAC
Power Consumption	<5.2kw	<6.7kw	<8.4kw	<12.4kw
Net Weight	173kg	180kg	186kg	204kg
Dimensions (LDH)	1131×655×1237mm
Working Temperature	0 ~ 40°C
Working Humidity	<70%

Welding Performance — Maximum Material Thickness

Material	1000W	1500W	2000W	3000W
Stainless Steel	≤3.0mm	≤4.0mm	≤6.0mm	≤8.0mm
Mild Steel / Carbon Steel	≤3.0mm	≤4.0mm	≤6.0mm	≤8.0mm
Galvanized Sheet	≤2.0mm	≤3.0mm	≤5.0mm	≤6.0mm
Aluminum Alloy	≤2.0mm	≤3.0mm	≤4.0mm	≤5.0mm
Brass	≤2.0mm	≤3.0mm	≤4.0mm	≤5.0mm

Safety Light Emission System

This machine is equipped with a triple-layer safety system:

1. Safety Ground Lock — Laser can only emit when the welding gun physically touches the workpiece, preventing accidental firing
2. Gas Detection System — Automatically alarms if the gas cylinder is not open or gas flow is too low, protecting the torch lens
3. Double Safety — Welding gun trigger button AND laser shutter both must be active to emit light

Machine Structure & Key Components

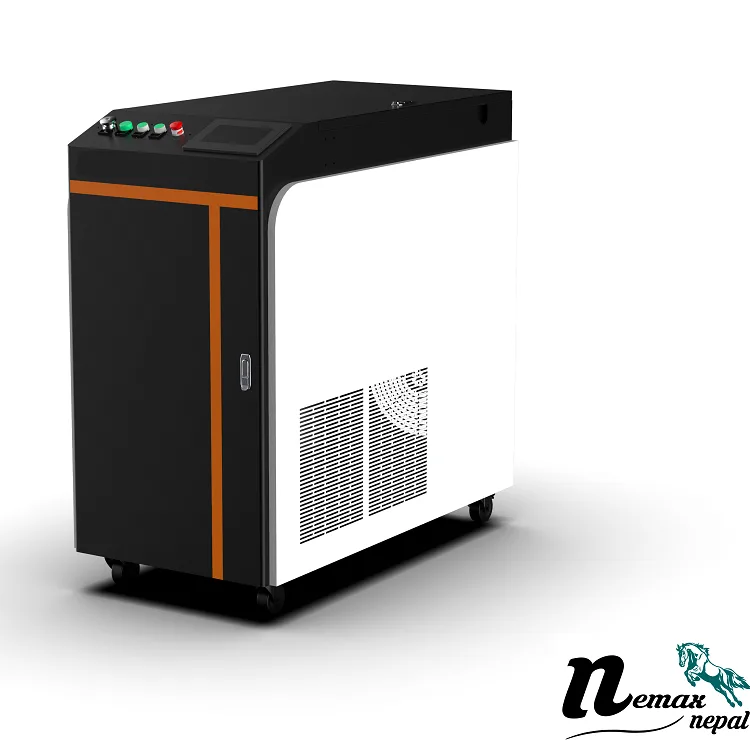

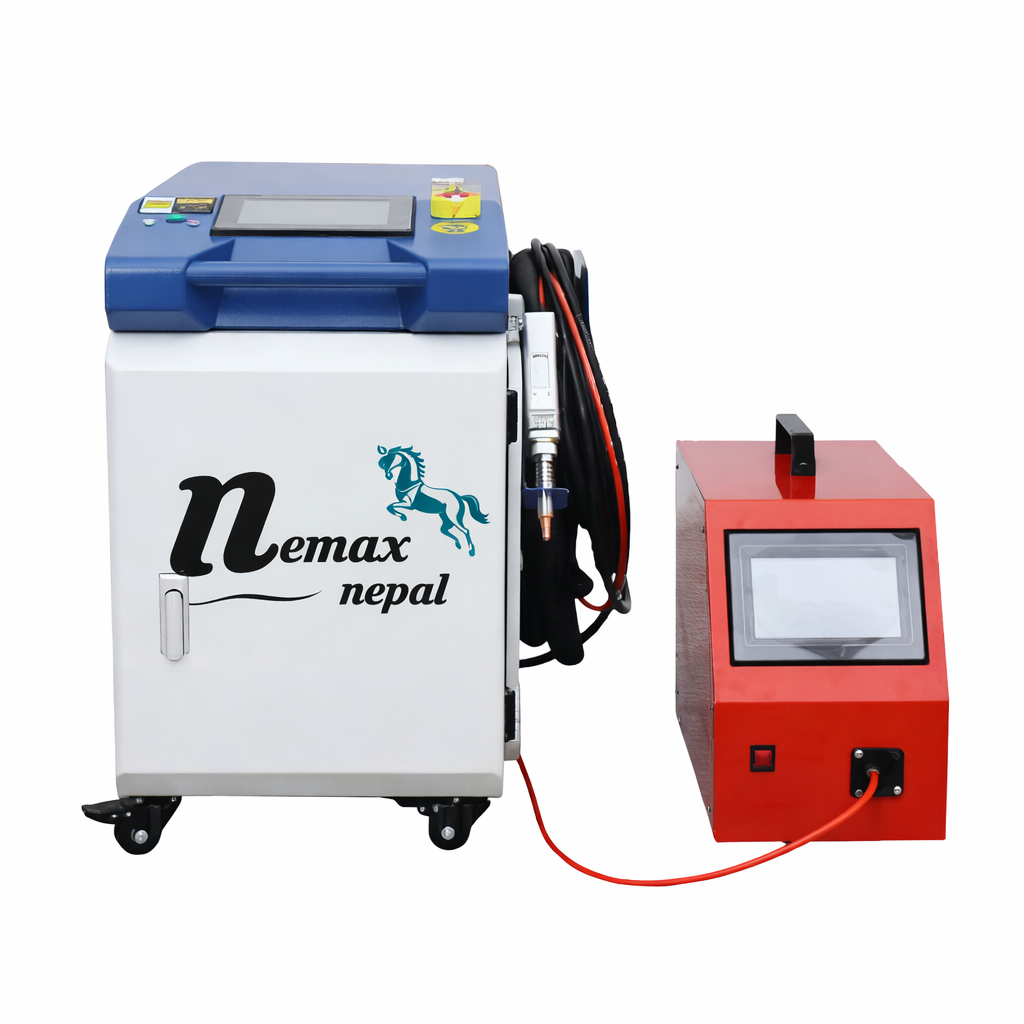

Machine Body

The complete system integrates:

• CW Fiber Laser Source
• Handheld Welding Gun
• Built-in Chiller (Water Cooling)
• Wire Feeder
• Laser Control System
• Safety Light Emission System

Welding Head / Gun Structure

Component	Function
Copper Nozzle	Replaceable for different processes (concave, convex, wire feeding nozzle)
Scale Tube	Focal length adjustable ±10mm by sliding forward/backward
Wire Feeding Bracket	Fixes the wire feeding rod; removable when not in use
Status Indicator Light	Green = Normal; Flashing Red = Laser alarm or low gas; Steady Red = Lens or motor overheating
Protective Lens Assembly	Protects internal optics; replaceable when dirty
Focusing Lens Assembly	Focuses laser into extremely high energy density for welding
Reflector & Motor	Drives lens oscillation at high speed, shapes laser from point to line
Trigger Button	Triggers laser emission during handheld welding
Gas Path	Interface for shielding gas and internal air-cooling
QBH Locking Sleeve	Connects to laser QBH output head

Control Panel — 4 Sections

1. Home Screen

Displays real-time welding parameters and allows:

• Laser Enable ON/OFF toggle
• Red light swing preview (Line/Point)
• Welding mode selection (Continuous/Spot)
• Safety lock status monitoring

2. Technology Screen

Store and recall up to 10 sets of welding process parameters. Key adjustable parameters:

Parameter	Description
Scan Speed	Motor swing speed inside welding gun (recommended 300mm/s)
Scan Width	Welding spot size, 0~6mm adjustable
Peak Power	Laser output power (10%~100% of total)
Duty Cycle	Light output time proportion per frequency cycle
Pulse Frequency	Works with duty cycle for pulsed welding

3. Setting Screen

(Password protected: 123456)

Parameter	Recommended Setting
Open Gas Delay	150ms ~ 200ms
Off Gas Delay	200ms ~ 300ms
Spot Welding Type	Fish Scale or Intermittent
Language	19 languages supported

4. Monitor Screen

Real-time monitoring of:

• Input signal status (laser trigger, secure lock, alarm signals)
• Output signal status (PWM, laser enable, analog voltage)
• Power state (24V, ±15V supply voltage and current)
• Motor driver temperature
• Protective lens temperature
• Communication status between touchscreen and motherboard

4 Operation Modes

🔵 1. Welding Operation

Supports butt welding, lap welding, seal welding, seam welding, and spot welding. Both continuous and spot welding modes available.

🔵 2. Cutting Operation

• Set scan width to 0 (red light becomes a point)
• Use nitrogen gas with pressure 0.6~1.2MPa
• Recommended cutting thickness: less than 2mm (less than 3mm for newer models)
• Ground lock must be safely activated during cutting

🔵 3. Cleaning Operation

• Replace focusing lens with special cleaning lens (flat surface up, convex surface down)
• Available focal lengths: F150 (30mm width), F400 (60mm width), F800 (120mm width)
• Scanning frequency range: 10~100Hz
• Used for rust removal, paint stripping, oxide layer cleaning

🔵 4. Wire Feeding Welding

• Connect wire feeding signal wire to wire feeder
• Adjust wire feeding speed, wire return length, and wire filling length on wire feeder screen
• Process group No. 8 is specially dedicated for double wire feeding

Key Advantages

⚡ Speed & Quality

• Welding speed is several times faster than TIG welding
• Welding completed in one pass with smooth, strong weld seams
• No post-welding polishing required
• Weld width adjustable from 0 to 6mm

💰 Low Operating Cost

• Virtually no consumables
• Minimal welding fumes
• Low power consumption
• Fiber laser lifespan: 100,000 hours with no power decay

🛡️ Safety

• Multiple laser emission protection measures
• Safety ground lock — laser only emits when gun contacts workpiece
• Gas detection alarm system
• Multiple alarm systems for laser, chiller, and gas pressure

🌍 Versatility

• Wide range of weldable materials: stainless steel, carbon steel, aluminum, galvanized sheets, copper, brass, titanium alloy
• Supports 19 languages including English, Chinese, Japanese, Korean, Russian, German, French
• Multiple pre-stored welding parameters for different materials

📦 Portability

• Compact structure with wheels for easy mobility
• Handheld gun weighing only 0.75kg
• 10m torch cable for wide working range
• Suitable for outdoor operations

Welding Process Parameters Guide

Stainless Steel / Carbon Steel

Thickness	Wire Diameter	Swing Width	Swing Speed	Laser Power	Duty Cycle	Gas Flow
1.0mm	0.8mm	1.0~2.0mm	300~400mm/s	300~500W	100%	10~15L/min
1.5mm	1.0mm	1.5~2.5mm	300~400mm/s	500~700W	100%	10~15L/min
2.0mm	1.0/1.2mm	2.0~3.5mm	300~400mm/s	700~900W	100%	10~15L/min
3.0mm	1.2/1.6mm	2.5~4.0mm	300~400mm/s	900~1200W	100%	10~15L/min
4.0mm	1.2/1.6mm	2.5~4.0mm	300~400mm/s	1200~1600W	100%	10~15L/min
5.0mm	1.6mm	3.0~5.0mm	300~400mm/s	1600~2000W	100%	10~15L/min
6.0mm	1.6mm	3.0~6.0mm	200~300mm/s	1800~2500W	100%	10~15L/min
8.0mm	1.6/2.0mm	3.0~6.0mm	150~250mm/s	2500~3000W	100%	10~15L/min

Aluminum Alloy

Thickness	Wire Diameter	Swing Width	Swing Speed	Laser Power	Duty Cycle	Gas Flow
1.0mm	0.8/1.0mm	1.0~2.0mm	150~300mm/s	700~950W	100%	10~15L/min
1.5mm	1.0mm	1.5~2.5mm	150~300mm/s	900~1100W	100%	10~15L/min
2.0mm	1.0/1.2mm	2.0~3.5mm	150~300mm/s	1000~1300W	100%	10~15L/min
3.0mm	1.0/1.2mm	2.5~4.0mm	150~250mm/s	1300~1600W	100%	10~15L/min
4.0mm	1.2/1.6mm	2.5~4.0mm	150~250mm/s	1800~2500W	100%	10~15L/min
5.0mm	1.6mm	2.5~5.0mm	150~250mm/s	2500~3000W	100%	10~15L/min

Shielding Gas Requirements

Requirement	Details
Recommended Gas	Argon or Helium
Purity	≥ 99.99%
Flow Rate	Greater than 10 L/min
Standard	ISO 8573-1:2010, Class 2.4.3
Note	For titanium alloys, argon gas is mandatory

Chiller Maintenance

• Use only purified, distilled, or deionized water — never tap water or well water
• Change chiller water every 3 to 6 months
• Low-temperature water (for laser): recommended 24~26°C
• Normal-temperature water (for output head and gun): recommended 27~28°C
• Winter antifreeze ratios:
  • -2~-5°C → Water:Antifreeze = 8:2
  • -12~-15°C → Water:Antifreeze = 7:3
  • -22~-25°C → Water:Antifreeze = 6:4

Daily Maintenance Schedule

No.	Maintenance Part	Content	Cycle
1	Water lines & pipes	Check for tightness and damage	Monthly
2	Welding gun protective lens	Replace when dirty or damaged	As needed
3	Laser center position	Check centering with red light	Every startup
4	Chiller	Check water level and quality	Every 3~6 months

Startup Steps

1. Connect gas cylinder to protective gas interface (argon/nitrogen, flow >10 L/min)
2. Connect power cable correctly and ensure proper grounding
3. Release Emergency Stop switch and press Start button
4. Wait ~15-20 seconds for indicator light to turn green
5. Press Laser button to open laser shutter
6. Confirm no alarms on software interface
7. Set parameters (laser power, welding width, swing speed) on touchscreen
8. Enable “Laser Enable” on software
9. Clamp ground wire clip onto workpiece
10. Contact copper nozzle to workpiece and press trigger to begin welding

Shutdown Steps

1. Press Laser button to close laser shutter
2. Press Emergency Stop button
3. Turn off air switch on back panel
4. Close gas valve on protective gas cylinder
5. Store welding torch and ground clamp properly

Safety Precautions

• ⚠️ Always wear laser safety goggles during operation
• ⚠️ Never look directly at the welding gun output port
• ⚠️ Do not use in dim or dark environments
• ⚠️ Maintain optical cable bending radius greater than 200mm
• ⚠️ Handle welding torch carefully — it is a precision component
• ⚠️ When welding copper or aluminum (highly reflective materials), tilt the torch — never hold perpendicular to workpiece
• ⚠️ Ensure no one stands on the opposite side of the welding direction
• ⚠️ All repairs must be performed by qualified professionals only

Common Troubleshooting

Problem	Solution
Laser source alarm	Check red light output, chiller temperature & water flow, QBH connection
Chiller alarm	Check if chiller is on, check water level, clean filter, check for leaks
Gas pressure alarm	Check if gas valve is open, check flow rate (>10 L/min), check for leaks
No laser emission	Check alarms, check lens cleanliness, check trigger & ground lock signals, check PMW & Laser Enable voltage (24V)
Weak laser energy	Clean protective lens, readjust focus position
Protective lens frequently damaged	Ensure gas flow >10 L/min, keep torch angle <70° from workpiece — never weld at 90°
Copper tip overheating	Normal for aluminum welding; check laser centering and lens cleanliness
Indicator light flashing randomly	Check grounding, check for large electrical equipment interference nearby

Warranty & After-Sales Support

• 🔧 1 Year Service Warranty on machine
• 📞 Customer response within 48 hours
• 🎓 operator training provided
• 💻 technical support

Certifications

This machine holds international certifications:

• ✅ IEC 60825-1 — Safety of laser products
• ✅ IEC 60204-1 — Safety of machinery electrical equipment
• ✅ CE Certification — European conformity

Why Choose Nemax Nepal?

Nemax Nepal brings you the most advanced fiber laser welding technology available in Nepal. We provide:

• ✅ Genuine Horizon Laser products
• ✅ Professional installation and commissioning
• ✅ On-site operator training
• ✅ Long-term after-sales support
• ✅ Spare parts availability

Whether you are in construction, fabrication, automotive, or manufacturing — the 4-in-1 Handheld Fiber Laser Welding Machine from Nemax Nepal is your complete metal processing solution.

Get in Touch

📞 Contact Nemax Nepal today for pricing, live demonstration, and installation details.

Nemax Nepal — Your Trusted Partner for Laser Technology Solutions in Nepal
