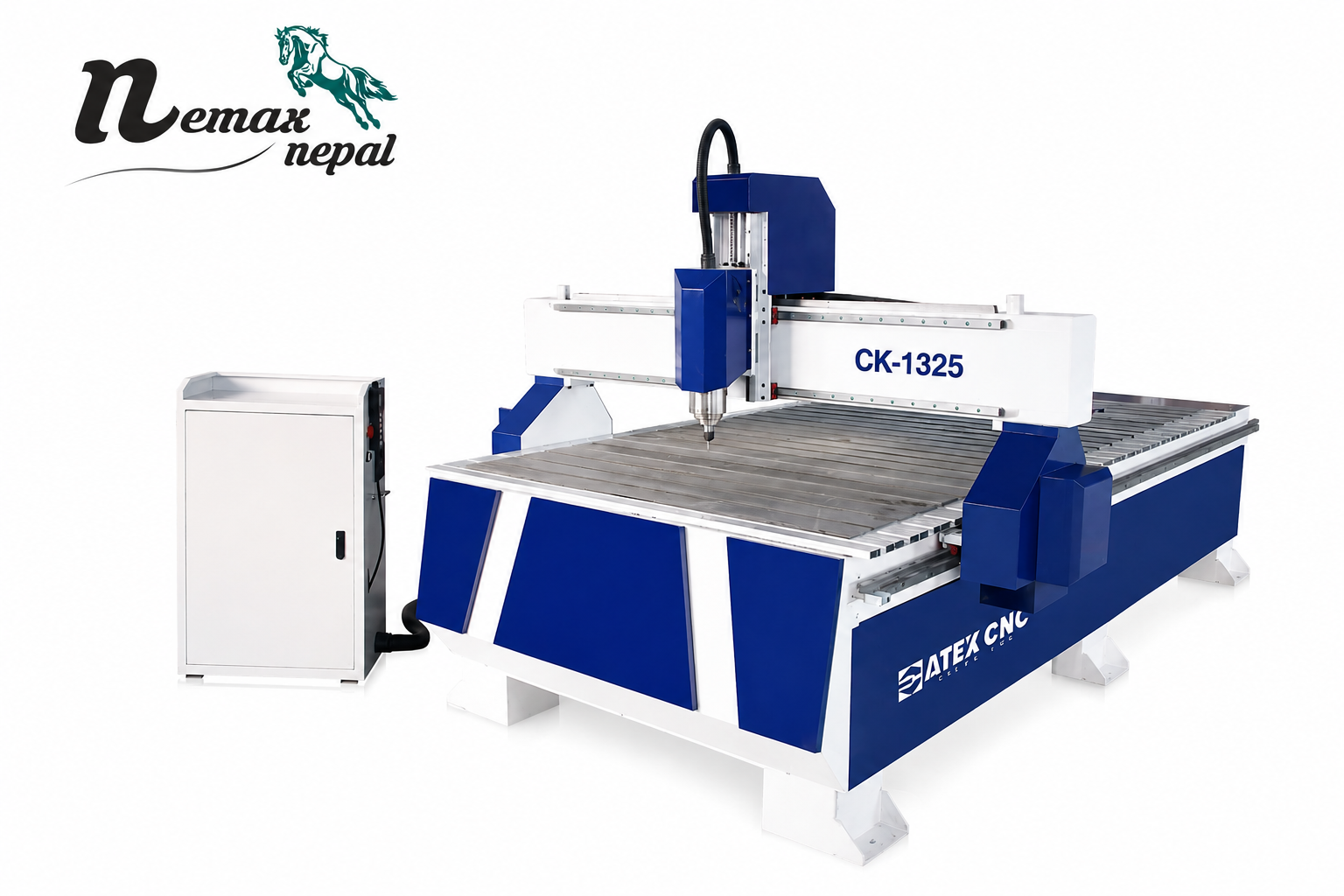

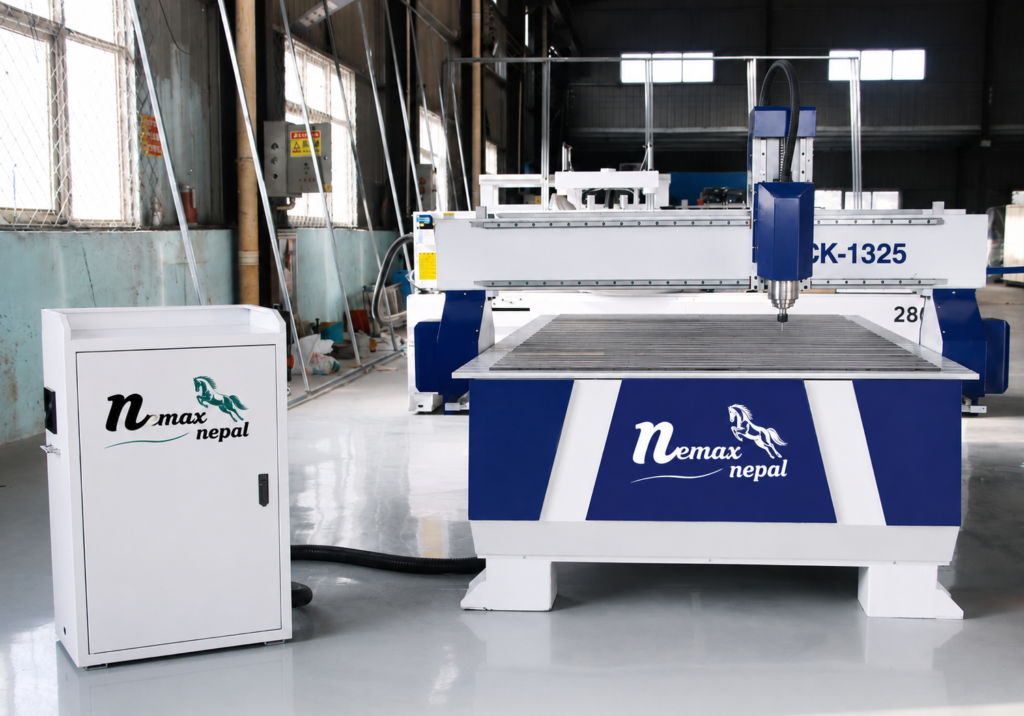

The CK-1325 CNC Wood Router Machine is an affordable and powerful entry-level CNC machine designed for woodworking, furniture manufacturing, advertising, acrylic cutting, carving, and industrial fabrication applications in Nepal. With a standard 4×8 feet (1300×2500mm) working area, this CNC router is perfect for processing full-size boards without pre-cutting, helping businesses improve productivity, precision, and automation.

This machine is ideal for beginners, workshops, furniture factories, signage businesses, and production industries looking for a reliable CNC router with professional performance at a competitive price.

Technical Specifications

Specification	Details
Model	CK-1325
XYZ Working Travel	1300×2500×200mm (customizable according to processing requirements)
Gantry	Thickened cast iron gantry, cast iron bracket
Bed	Machining center processed heavy-duty bed with independent anti-interference control cabinet
Spindle	CATEKCNC dedicated 3.5KW high-speed water-cooled variable frequency spindle
Spindle Speed	6000–24000 r/min
Driving Mechanism	Yako / Leadshine motor
Variable Frequency Drive	BEST / Hpmont inverter
Table	Aluminum alloy T-slot table (optional vacuum clamping table)
Transmission Mechanism	XY axis high-precision ground helical rack + Z axis high-precision TBI ball screw
Guideway	Taiwan Hiwin high-precision linear square rail / flange slider
Equipment Cable	Pure copper anti-bending high-flexible cable
Holdable Tool Shank Diameter	3.175mm, 4mm, 6mm, 12.7mm, etc., ER20 / ER25
Control System	NCStudio V5.4.49 (supports resuming carving after power outage) / RichAuto DSP A11 / Mach3
Lubrication System	Centralized electric oil-lubrication system
Operating Voltage	AC380V / 220V 50/60Hz
Compatible Software	ArtCAM, Type3, AutoCAD, CDR, JDpaint, etc.
Engraving Instruction	Standard G code, u00, mmg, plt
Security System	Photoelectric over-travel limit protection on three linear axes
Repeat Positioning Accuracy	±0.02mm
Engraving Accuracy	0.01mm
Max. Working Speed	18000mm/min
Max. Movement Speed	25000mm/min
Weight	1260kg
Dimensions	3100×2100×1750mm

Key Features of CK-1325 CNC Router Machine

• Large 4×8 feet working area (1300×2500mm)
• Heavy-duty cast iron gantry and strong machine structure
• High-speed 3.5KW water-cooled spindle
• High precision Taiwan Hiwin linear guide rails
• Aluminum T-slot worktable for strong material holding
• Automatic and high-speed CNC processing
• Supports engraving, cutting, drilling, grooving, and carving
• Easy-to-use CNC control system suitable for beginners
• Compatible with AutoCAD, ArtCAM, Type3, JDpaint, PowerMILL, and more
• Breakpoint resume function after power failure
• Low maintenance cost and long machine lifespan
• Optional vacuum table, dust collector, and customization support

Why Choose the CK-1325 CNC Wood Router?

Large Processing Size

The 4×8 feet table allows direct processing of full-size MDF, plywood, acrylic, PVC, and wooden sheets without cutting them beforehand.

High Precision & Stability

Built with a rigid heavy-duty structure and precision linear rails for accurate and smooth machining.

Beginner Friendly

The English control system and simple operation make it easy even for first-time CNC users.

Multi-Purpose Applications

Suitable for cutting, engraving, carving, drilling, grooving, and 3D woodworking applications.

Cost Effective

Affordable entry-level CNC solution with low maintenance and strong long-term performance.

Application Scope

Applicable Materials

• MDF
• Plywood
• Wood
• PVC
• Acrylic
• Foam Board
• Honeycomb Board
• Aluminum Composite Panel
• Copper
• Aluminum
• Plastic
• PCB Board

Applicable Industries

Furniture Industry

• Cabinets
• Wooden Doors
• Furniture Carving
• Office Furniture
• Cabinet Door Panels
• 3D Wood Carving

Advertising Industry

• Acrylic Cutting
• Signage
• Logo Cutting
• LED Letter Boards
• Billboards
• Light Boxes

Craft & Decorative Industry

• Wood Crafts
• Souvenirs
• Decorative Carving
• Architectural Models
• Sand Table Models

Electronic Industry

• PCB Boards
• Insulation Materials
• Plastic Components

What Is a T-Slot Workbench?

The CK-1325 CNC router uses a high-strength Aluminum T-Slot Workbench designed for strong and stable material fixing. The T-slot grooves allow clamps to tightly secure the material during machining, improving precision and preventing movement while processing.

Nemax Nepal – CNC Machine Supplier in Nepal

Nemax Nepal is launching the Entry-Level CK-1325 4×8 CNC Wood Router Machine in Nepal with installation, training, technical support, spare parts, and after-sales service support.

Suitable for:

• Furniture factories
• Interior workshops
• Advertising companies
• Acrylic fabrication
• Wood carving businesses
• CNC startups

For live demo, installation, training, and quotation, contact Nemax Nepal today.
