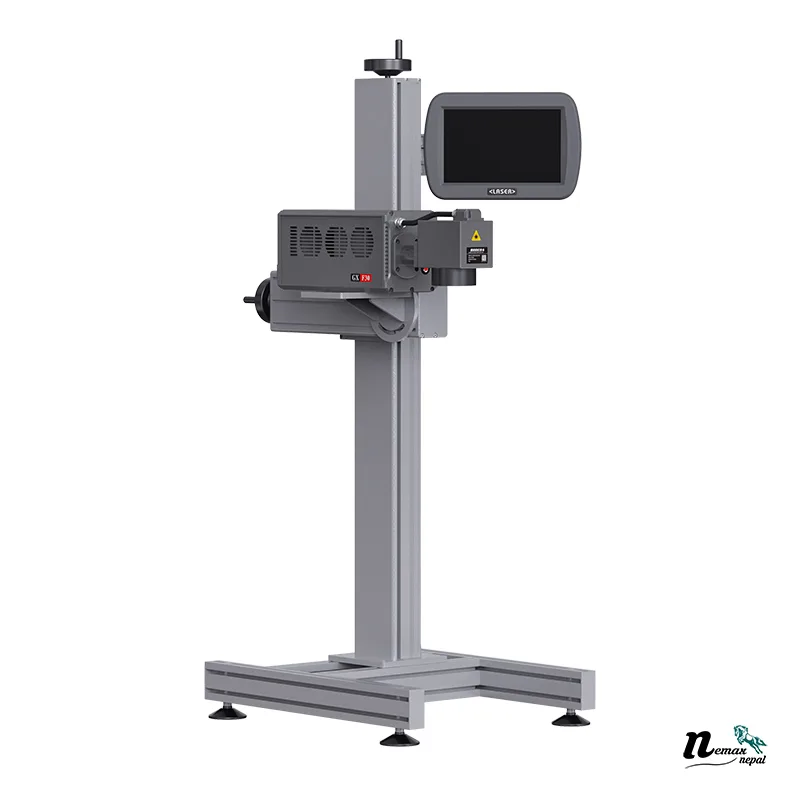

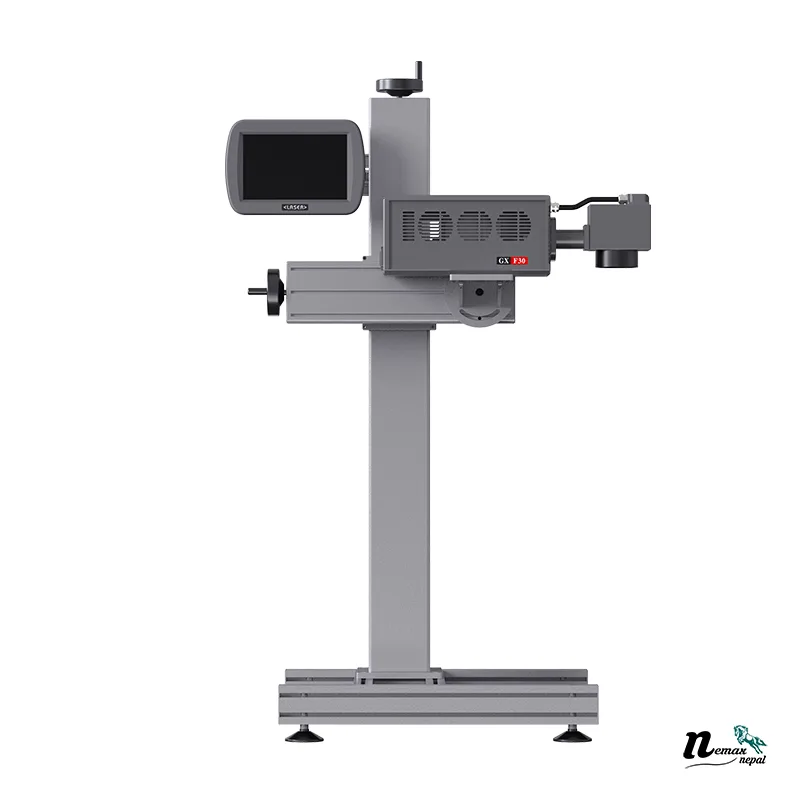

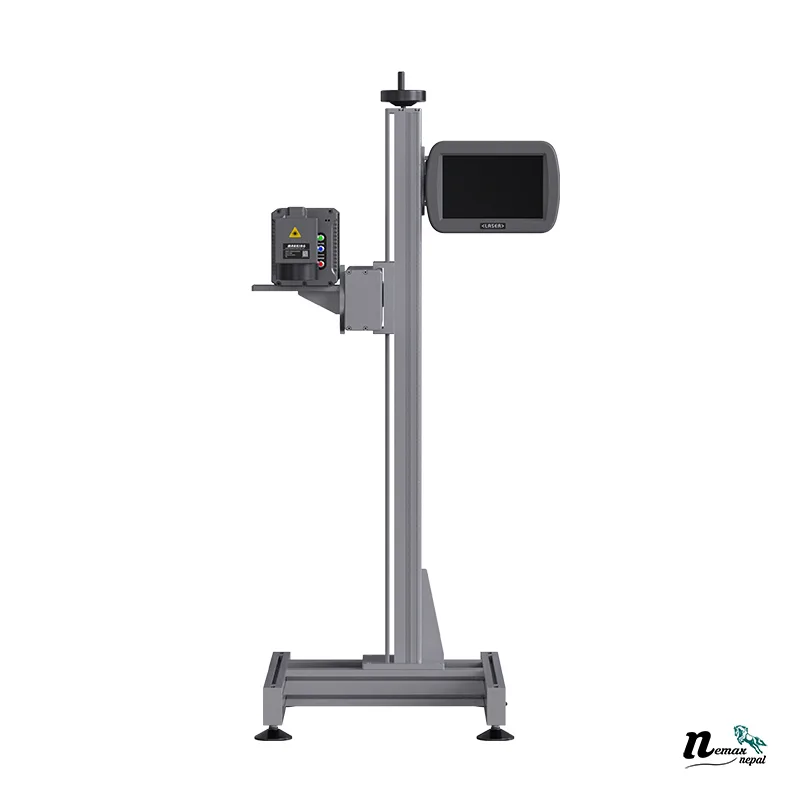

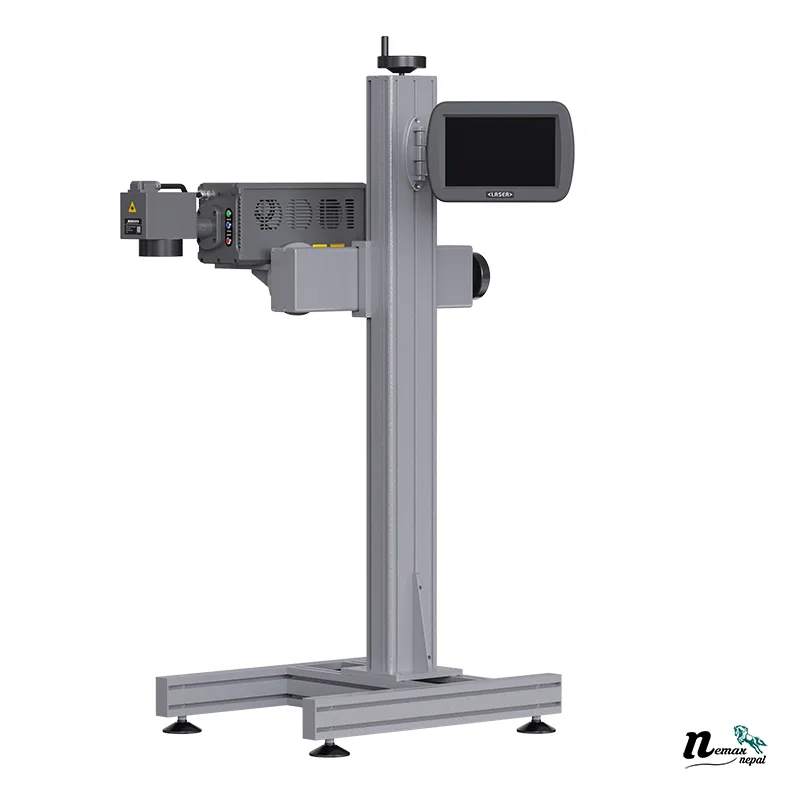

Co2 Flying Laser Marking Machine
High-Speed Deep Laser Marker，Affordable CO2 Laser Machine. CO2 laser marking machine with high marking speed as well as an integrated controller. Its’ marking speed could acheive 7000mm/s(80 charactors/s). And the surface of the markers is very clean, beautiful, and without black imprinting.
₨540,000
Application for 100w co2 laser printing machine:
Meenjet manufacturer offer Stable Industrial CO2 Laser Coding Machine for various products. The Laser Printing Marking Machine can use for intricate drawings, including logo, graphic arts, figures, scale, characters, words on or in the glass, plastic, acrylic, coated metal, wood, stone, leather and rubber.
| Model: | Meenjet Co2 Laser Marking Machine |
| Operating principle: | Adopt laser light working on the materials’s surface to let the surface of marking area evaporate into the dust |
| Material requirements: | Nonmetal stuff. HRC60. |
| Suitable surface of the materials: | Flat, round, fugged |
| Power consumption: | 20W / 30W / 50W Optional |
| Power requirements: | 220 V ± 10% 50Hz ± 1 % |
| Marking area: | 110X110/150X150/175X175/200X200/300X300mm |
| Marking speed: | 0-7000mm/s(80 characters/s) |
| Marking depth: | 0.01-0.03mm(different hardness, different depth) |
| Marking diameter for round materials: | 0.1-500mm |
| Customized book: | YES |
| Wholesale: | YES |
| Net weight: | About 90KGS |
| Gross weight: | Approx 107KGS |
| Delivery time: | Within 2-7 days |
| Working environment: | -10°c to 60°c |
| Package: | Sea-worthy package or air-worthy package in plywood case |
Resources:
| Model | Working Area | Main Configuration |
|---|---|---|
| MJ-20 | Standard Type: 110*110mm Optional Type: 70mmx70mm, 175mm×175mm 300*300mm | 1. Chinese Top brand Metal Laser Tube, using life over 20000 hours (American Synard Laser source for your choice); 2. High-speed scanning galvanometer with German technology, with fast marking speed and high precision; 3. Singapore lens, with fine focus effect and stable performance. 4. Professional software installed on the touch screen, which specially designed for the online marking. |
Technical Parameters
| Model: | SF-20/30/60/100 | Cooling Mode | Air Cooling |
| Power: | 20W(30W/60W/100W available) | Marking Speed | 7000mm/s |
| Laser Source | American Synard /CRD/DW | Minumum Line Width | 0.015mm |
| Laser Wavelength | 1064μm | Minumum Character | 0.2mm |
| Field Lens Brands | Singapore Wavelength | Pulse Frequency | 20Khz-60Khz |
| Marking Area: | 110mm*110mm, optional 70mmx70mm, 175mm×175mm 300*300mm | Operating Environment | 5℃-45℃, clean or dust-free |
| Control Card | JZC Brand EZCAD | Power Supply | AC220V+10% /50Hz or 60Hz |
| Operating System | Win XP/7/8/10 (32 bit, 64bit) |
